ST3303 PRO 28.2 INCH Double Row Ultra High Output LED Bar (LED3303-PRO-40L)

sku: LED3303-PRO-40L

price:
sale price: $649.99
We offer a variety of shipping options, including Depot Collection and delivery to business or residential addresses. Please proceed to checkout to receive a shipping quote.

description

delivery

review

Description

Our all new ST4K™ 12 Inch is the culmination of years of our proven experience in delivering market leading LED auxiliary lighting. Fitted with 20 of OSRAM’s® finest OSLON® LED for a combination of 4 Flood + 12 Spot + 4 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 468m

The ST4K™ range feature our all new 3-part beam adopted from our flag-ship Type-X driving light which has proven to outperform spot lights costing 3 x our price and a massive +165% increase in lux performance in comparison to the outgoing ST4000!

468m Metres 1 Lux Beam Throw

Market Leading Beam Distance!

Night

ST4K Double Row LED Light Bar

STEDI ST4K 12 Inch 20 LED LED Light Bar Lux Graph

5700 Kelvin (Pure White)

DETAILS

PERFORMANCE THAT LETS YOU TURN THE SUN BACK ON

  • STEDI ST4K-20 features 20 of OSRAM’s® finest OSLON® LED, selected for its high luminous flux and perfectly match optical properties.
  • 4 Flood + 12 Spot + 4 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 468m
  • Crystal White 5700K Colour temperature offers stunning clarity and definition with excellent Colour Rendering Index (CRI).
  • Our Pure-Drive™ circuit design allow 97% of input power to go directly to LEDs.

BUILT TO GO ALL NIGHT

  • A360.0 Cast face plate, extruded Aluminum heat sinkg | finished in 100% Polyester UV and abrasion resistant powder coat, ensures that our bars will never discolour.
  • Pressure Equalization vent with Gore® membrane | Protects against water ingress, dust & contaminants.
  • IP68 | Dust & Particle tight + Water-proof up to 3 meters – Drown it, we insist!

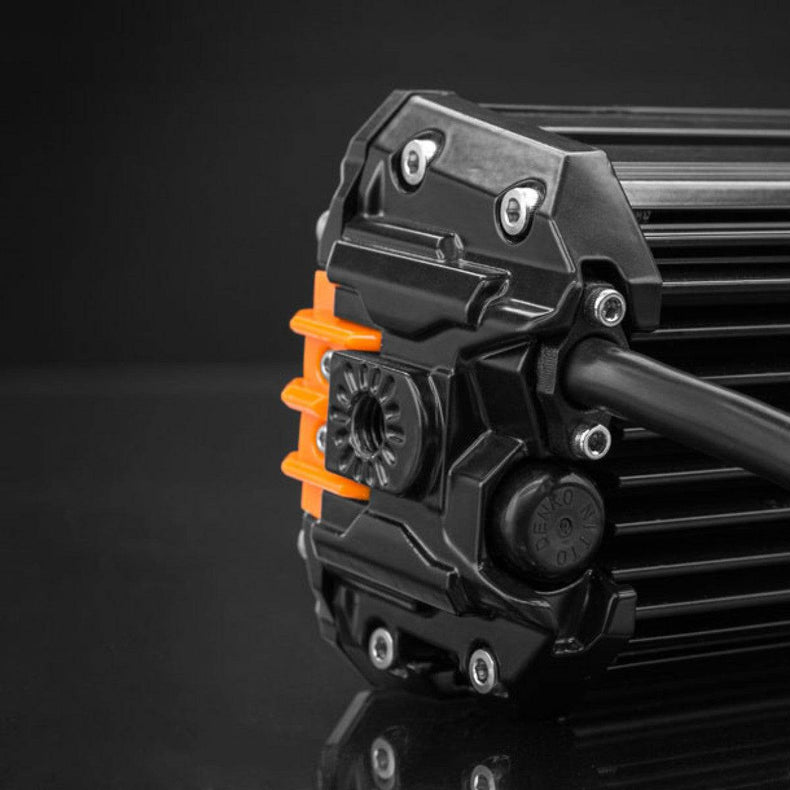

  • Environmentally sealed Deutsch ® DT connector.

Backed by our no nonsense 5-year replacement warranty.

MOUNT IT YOUR WAY

We know you want flexible mounting options, which is why we’ve included two seperate mounting options.

  • The included adjustable sliding mounts allow you to align the mount bolts to any pre-existing mounting holes. Make mounting to UHF tabs or Bull bar dech very straight forward.

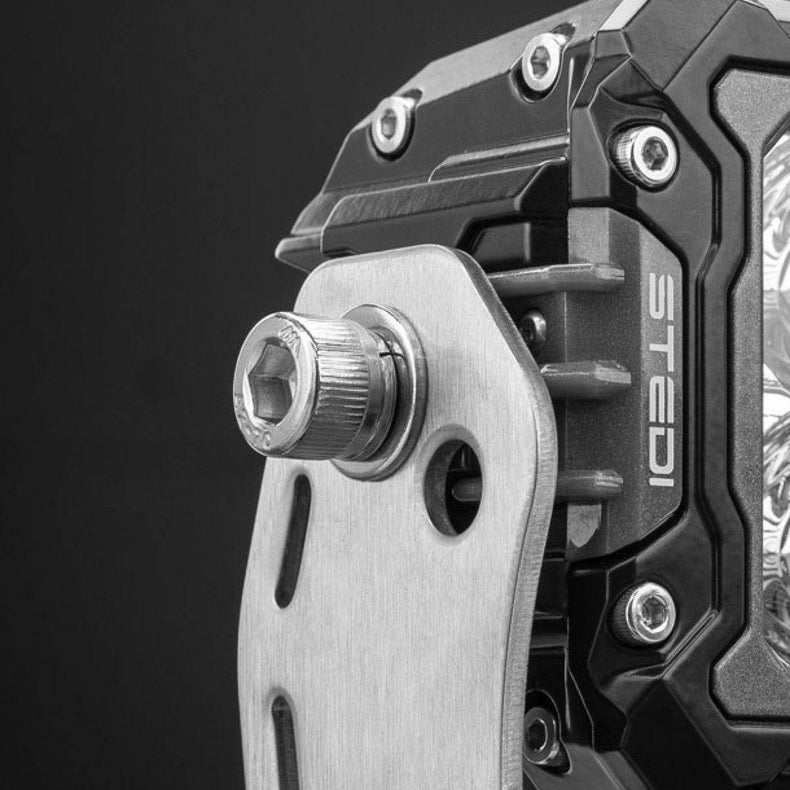

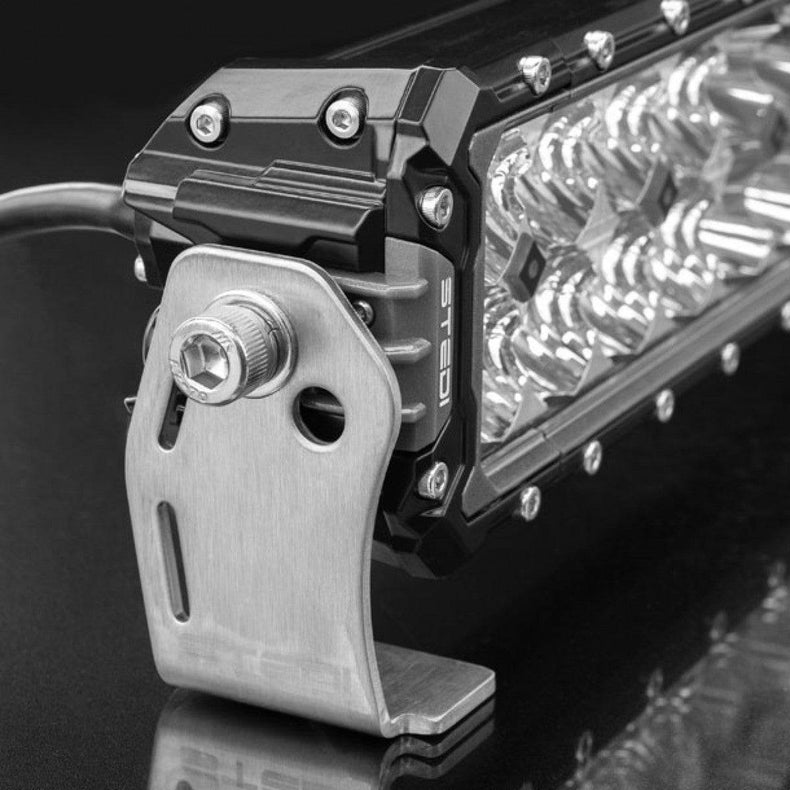

  • Or use our 3mm thick 304 Stainless steel side brackets, which feature + or - 15mm height adjustment.

EASY-FIT Plug & Play High Beam Wiring Harness included.

Included is our acclaimed Easy-Fit Plug and Play Wiring Harness with supplied H4 and HB3 Adapters, making for an easy connection to high beam. Further unlike other brands our kit has built in electronics making our harness compatible with even the most modern and sophisticated wiring systems. Whether your vehicle is positive or negatively switched our harness will work right out of the box without any modification whatsover.

 No nonsense 5 Year Replacement Warranty backed by an Australian company with bricks & mortar presence.

View

Specifications

LED MANUFACTURER  OSRAM (Oslon) ®
LED COUNT 20
VOLTAGE  12V & 24V
LENS MATERIAL OPTICAL GRADE, HARD COATED LEXAN
LUMENS 4,800 LUMENS
PEAK INTENSITY (CANDELA) 220,800cd
HOUSING MATERIAL A360.0 Cast face plate, extruded Aluminum heat sink
AMPERES 4.2A @ 13.6v
LIFESPAN 50,000
FLOOD BEAM 50°
SPOT BEAM 5.8°
INGRESS PROTECTION IP68
OPERATING TEMP -40°C to 60°C
WEIGHT 1.610kg

LED Light Bar Buyers Guide

What’s in the box

  • 1 x 12 inch 20 LED STEDI Oslon LED Light Bar
  • 2 x Brushed Stainless Steel Side Brackets
  • 2 x Adjustable Sliding Brackets
  • Easy-Fit High Beam Wiring Kit | HB3 & H4 piggy-back included.





SHIPPING POLICY:

  • Depending on your location all items will be sent out to you with Toll, Tnt or Saddlers Transport, North Line or Hi Trans
  • Shipping is within Australia only - (No international Delivery).
  • If all your Items are in stock your order will be dispatched on the next business day
  • We cannot send large items to a P.O box
  • Depending on your delivery location, please allow for 2-14 days for items to be delivered.
  • All items can be collected for no additional fee from our Sydney & Brisbane warehouses (click collect)
  • Unless you opt for delivery insurance, we are not responsible for any damage caused to the purchased item while in shipping transit



 RETURNS POLICY:

  • We recommend professional installation. If the product is damaged during installation, we are not responsible and will not issue a refund.
  • Before any returns or exchanges, please contact us with your item ID and reason for return/exchange.
  • When you have received your package, please inspect your product for any manufacturer defects or shipping damage prior to installation - contact us if there is any damage.
  • We do not accept returns if buyer has changed their mind, there must be a genuine problem with the item for us to consider a refund.
  • MINOR SCRATCHES WILL NOT BE CONSIDERED AS MANUFACTURER DEFECT.
  • All items need to be returned to OUR Sydney or Brisbane Warehouse
  • WE WILL ONLY PROCESS REFUND AFTER WE HAVE RECEIVED AND INSPECTED THE ITEM.
  • ITEM SHOULD BE RETURNED WITH ALL ACCESSORIES. IF ANY OF IT IS MISSING OR DAMAGE DURING FREIGHT WE WILL DEDUCT THAT FROM THE REFUND.
  • SHIPPING COST IS NON REFUNDABLE
  • RETURN SHIPPING IS SHOULDERED BY THE BUYER.
  • ITEMS NEED TO BE RETURNED WITHIN 30 DAYS OF RECEIPT
  • RETURNS WILL NOT BE ACCEPTED IF YOU CONTACT US AFTER 30 DAYS OF RECEIVING THE ITEM.



Lay-by

Aussie offroad Offer a 3 month Lay-by on all products, the item needs to be paid in full and picked up with in 3 months from the date of purchase. any lay-by that misses the 3 month mark will still have the option to pay off the invoice and pick up the item, if you choose to cancel, all monies paid will be deemed a non refundable deposit.
