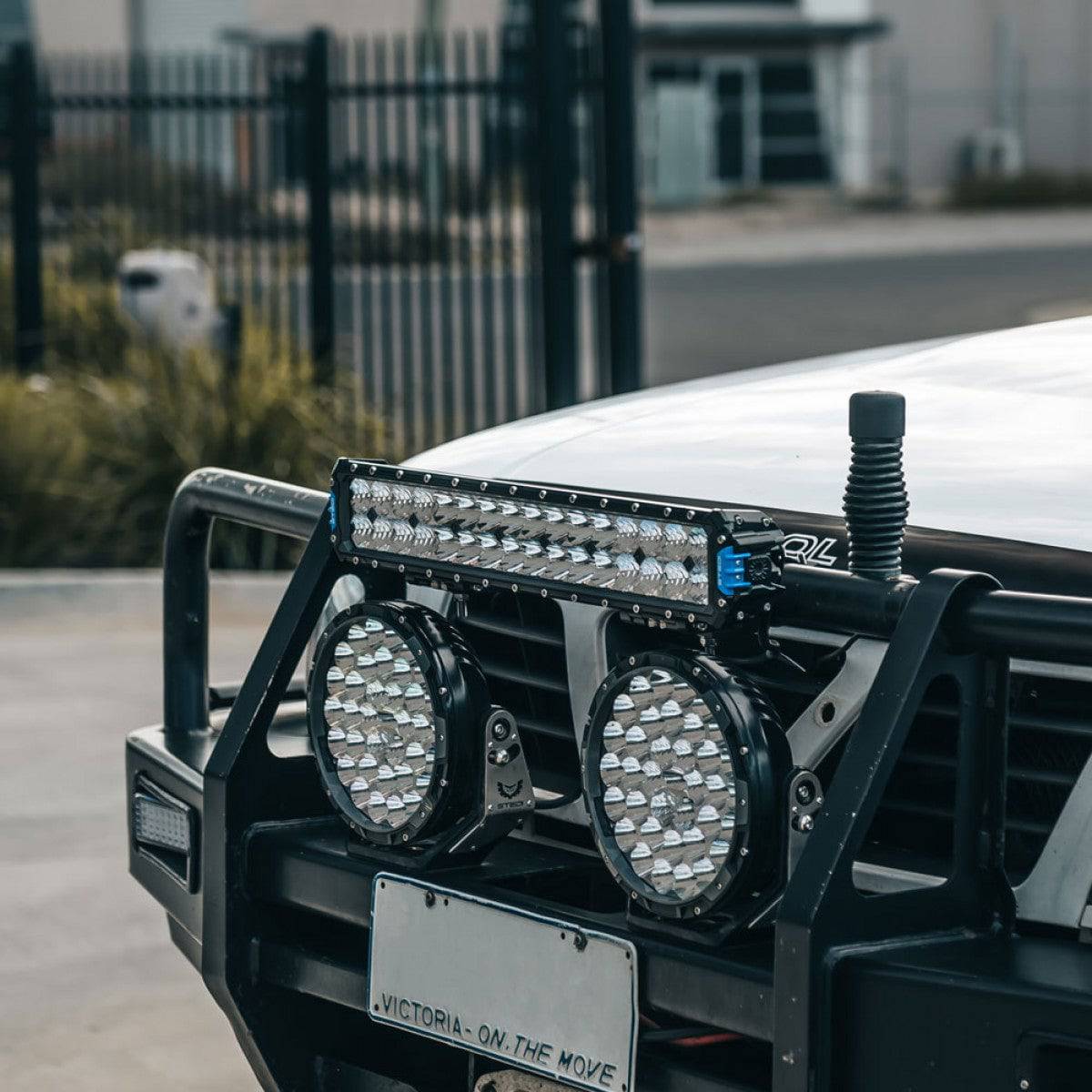

ST3303 PRO 23.3 INCH Double Row Ultra High Output LED Bar (LED3303-PRO-32L)
sku: LED3303-PRO-32L
description
delivery
review
Description
PERFORMANCE THAT LET'S YOU TURN THE SUN BACK ON
- STEDI ST4K-100 features 100 of OSRAM's® finest OSLON® LED, selected for its high luminous flux and perfectly match optical properties.

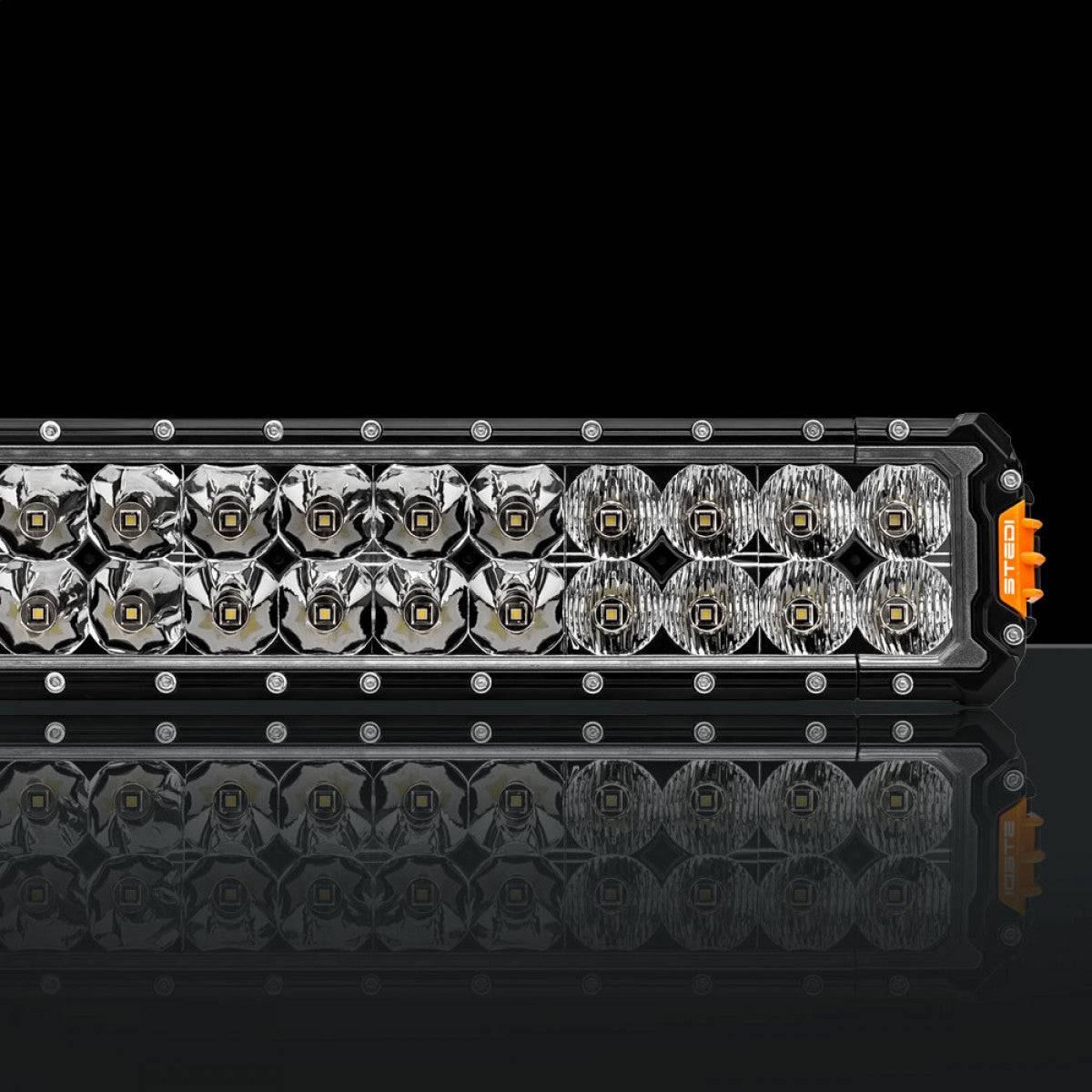

- 16 Flood + 68 Spot + 16 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 1,050m
- Crystal White 5700K Colour temperature offers stunning clarity and definition with excellent Colour Rendering Index (CRI).
- Our Pure-Drive™ circuit design allows 97% of input power to go directly to LEDs.
BUILT TO GO ALL NIGHT

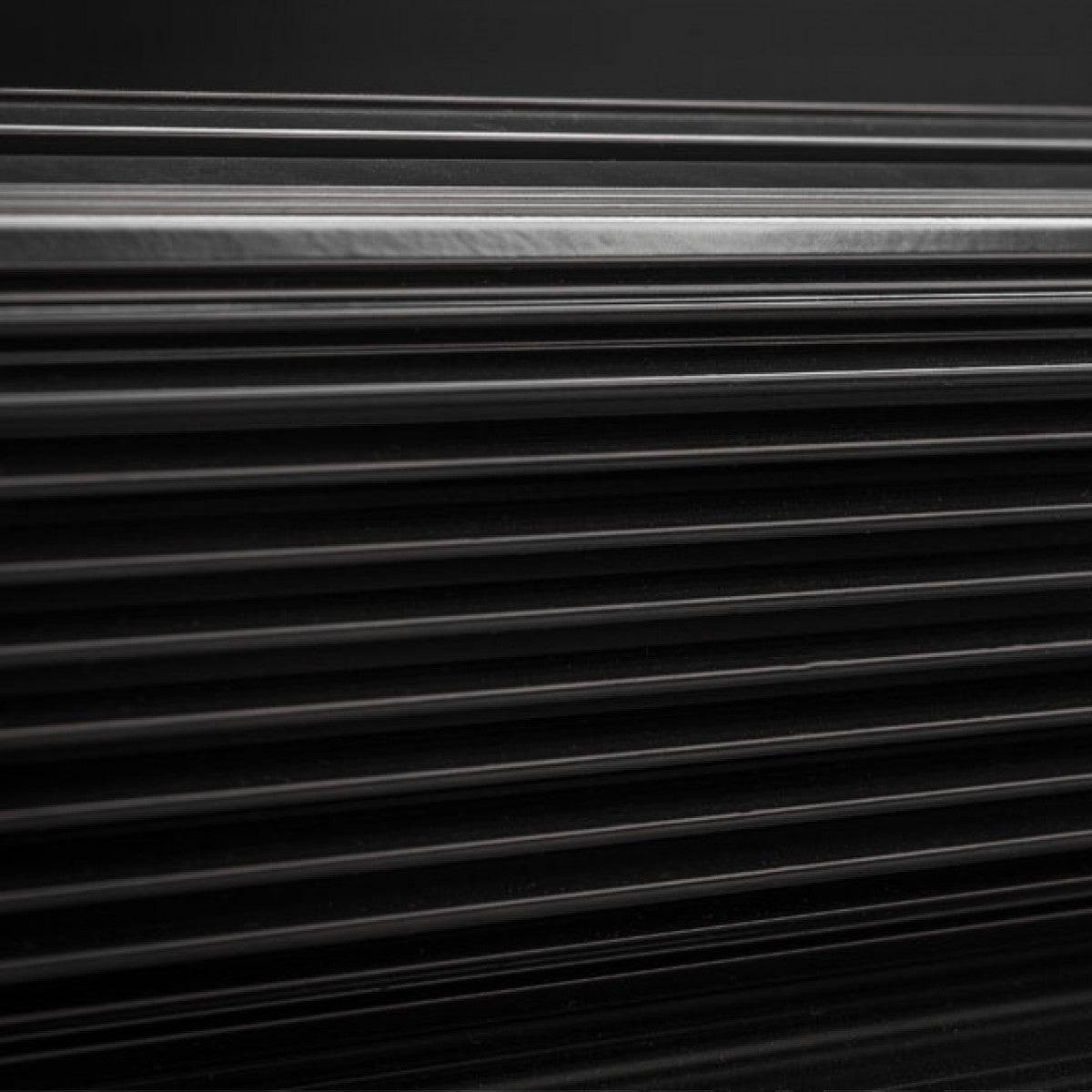

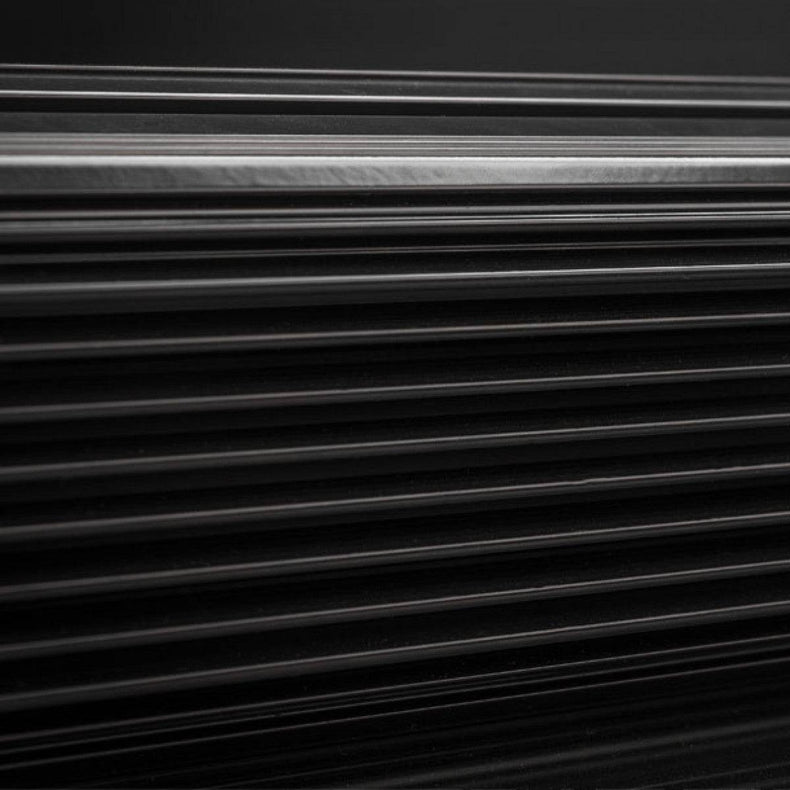

- A360.0 Cast face plate extruded Aluminium heat sink| finished in 100% Polyester UV and abrasion resistant powder coat, ensures that our bars will never discolour.

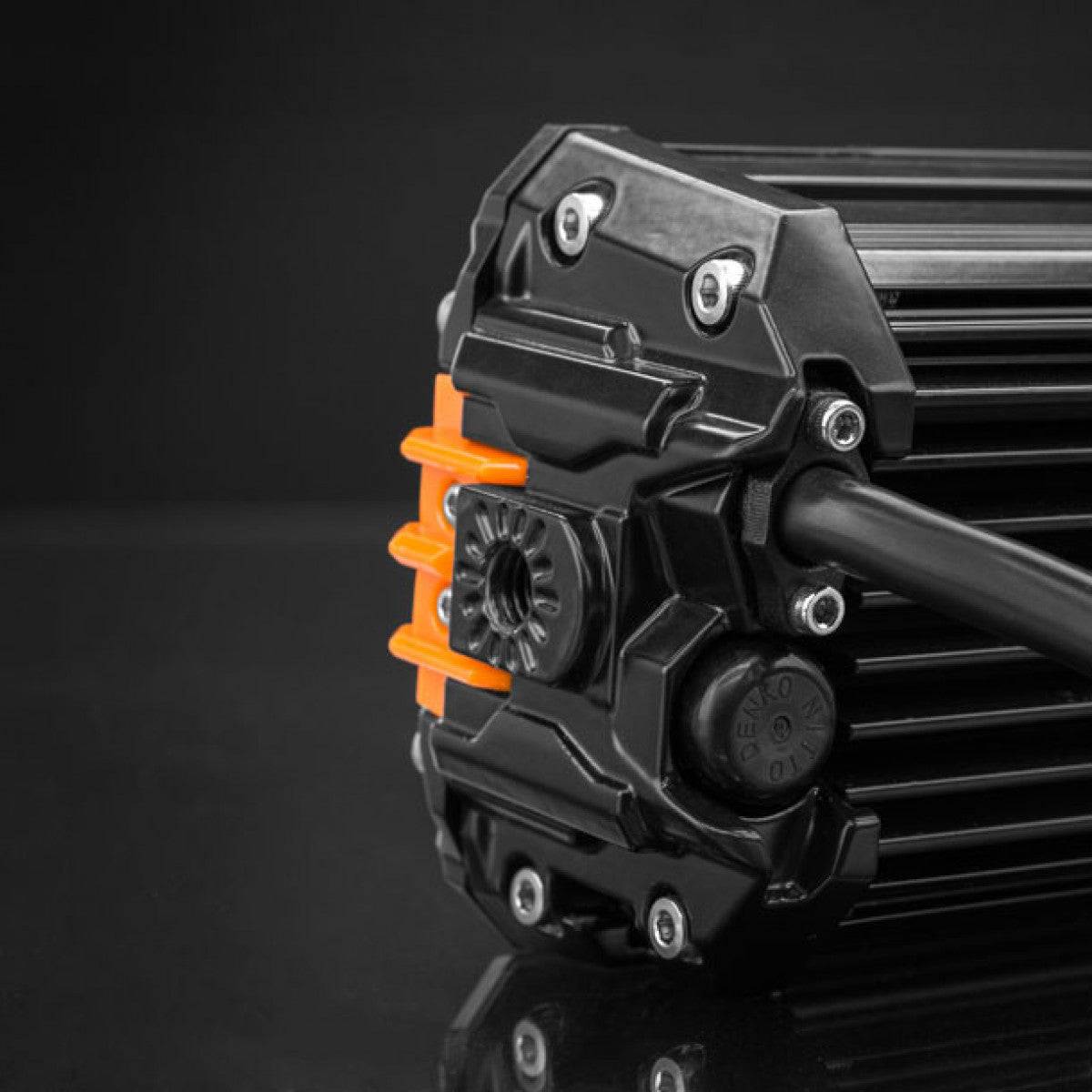

- Pressure Equalization vent with Gore® membrane | Protects against water ingress, dust & contaminants.
- IP68 | Dust & Particle tight + Water-proof up to 3 meters. Drown it, we insist!

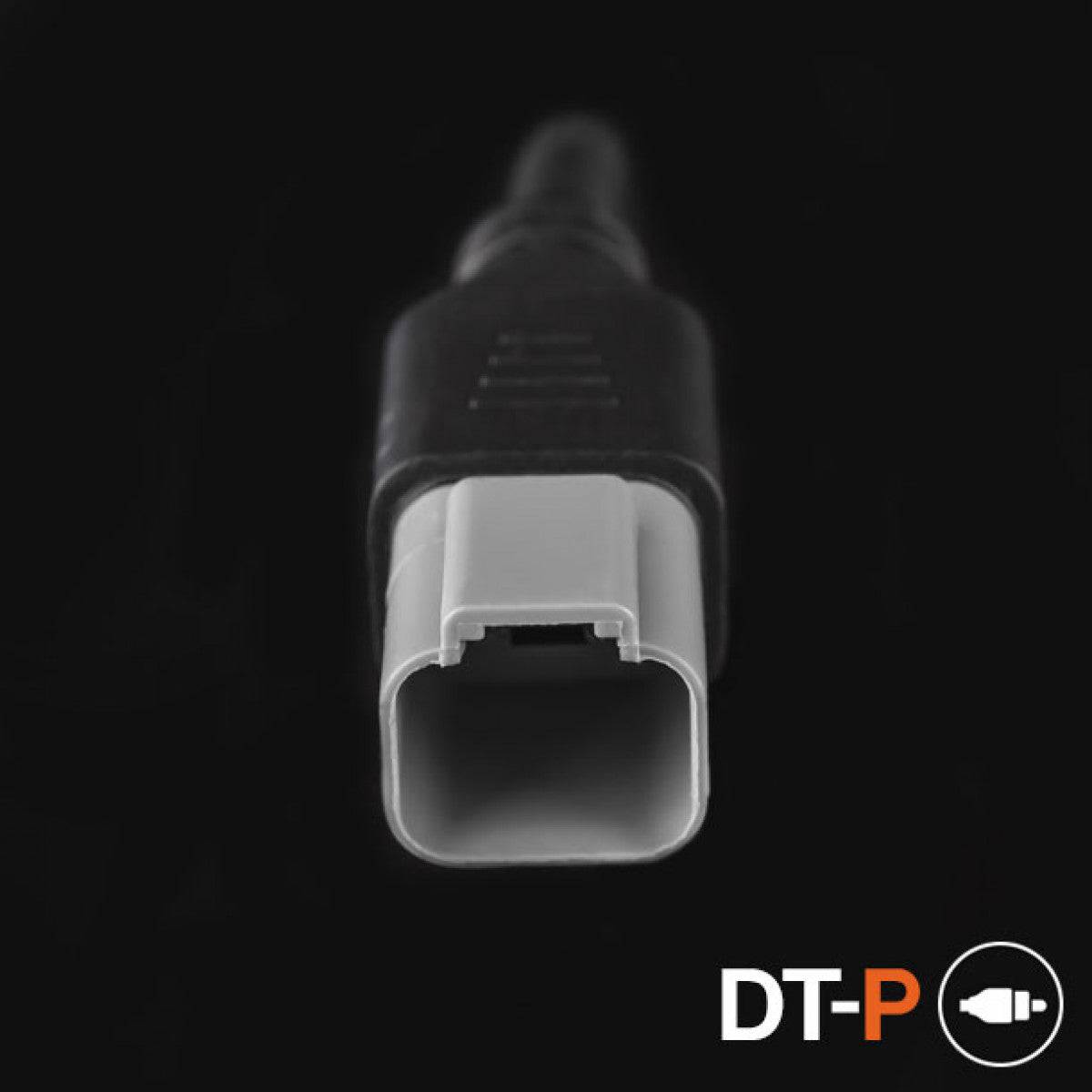

- Environmentally sealed Deutsch® DTP connector.
Backed by our no-nonsense 5-year replacement warranty.
MOUNT IT YOUR WAY
We know you want flexible mounting options, which is why we've included two separate mounting options.

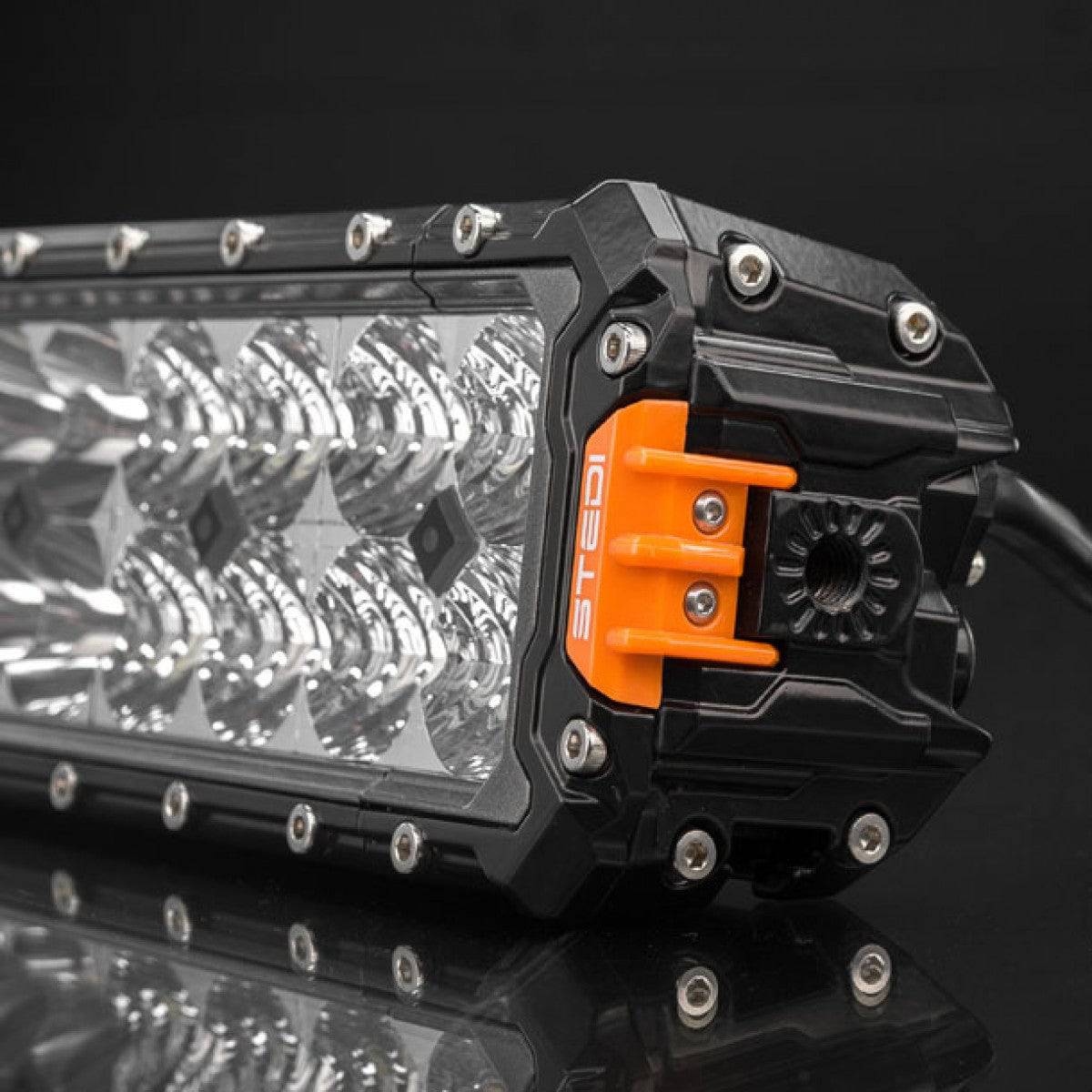

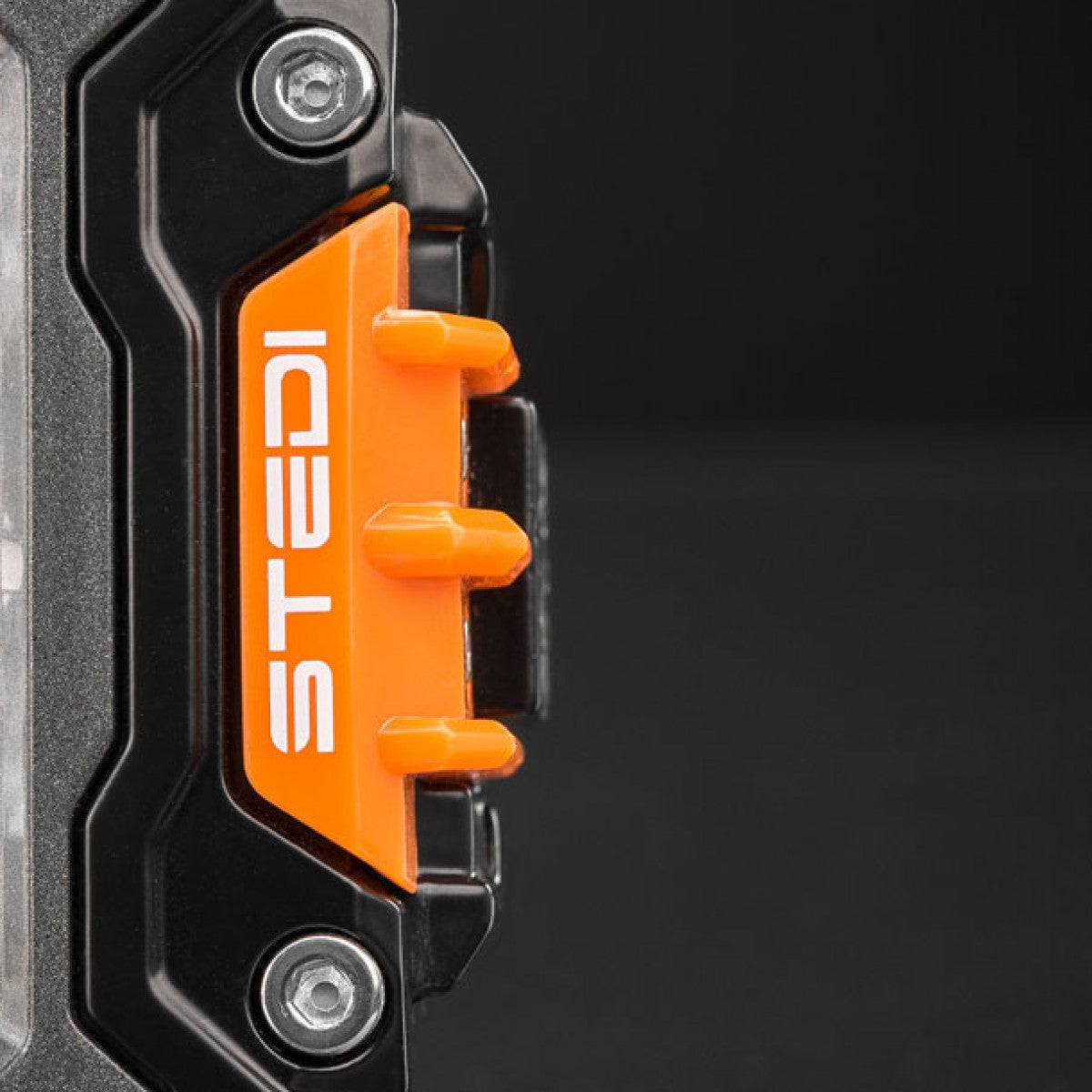

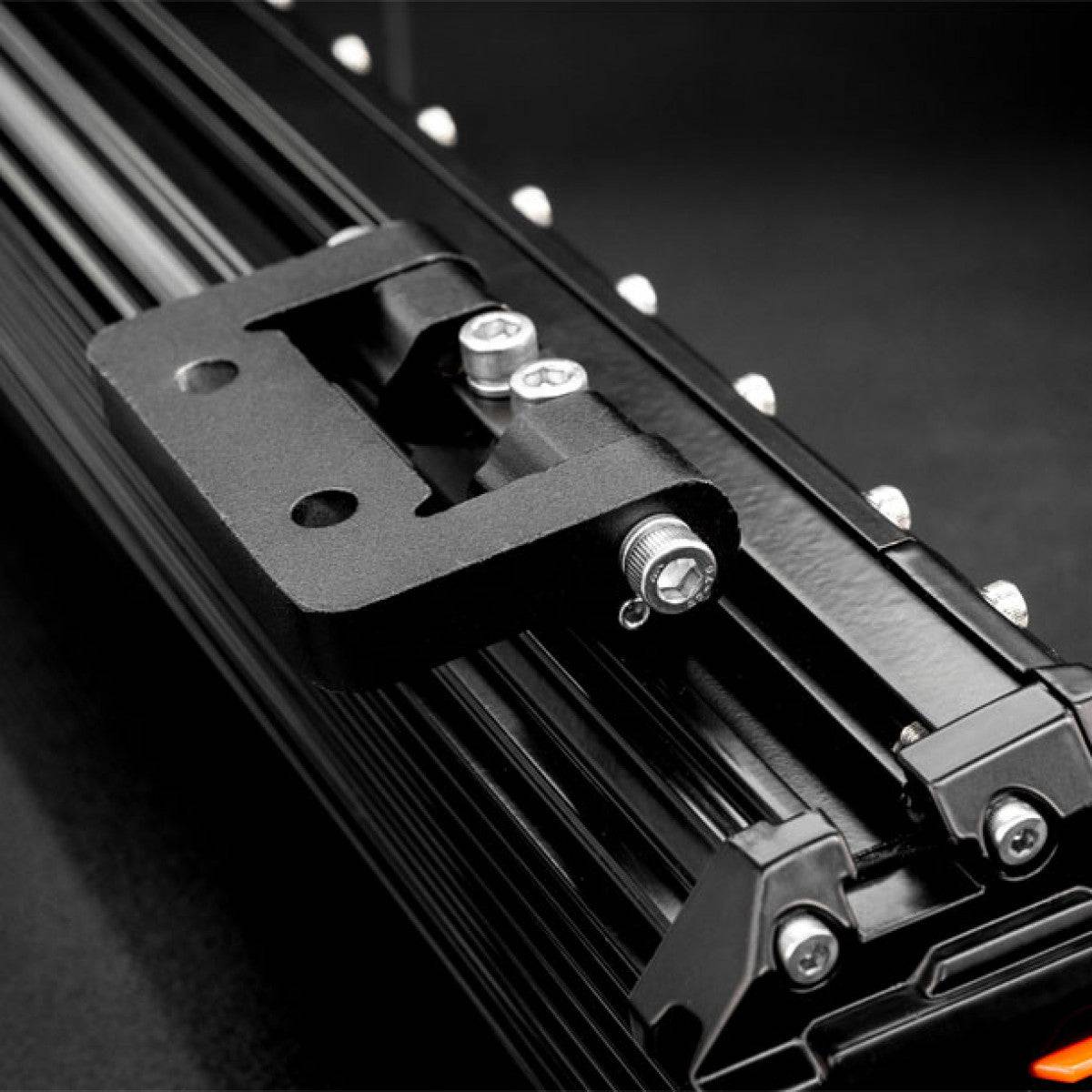

- The included adjustable sliding mounts allow you to align the mount bolts to any pre-existing mounting holes. Make mounting to UHF tabs or Bull bar deck very straightforward.

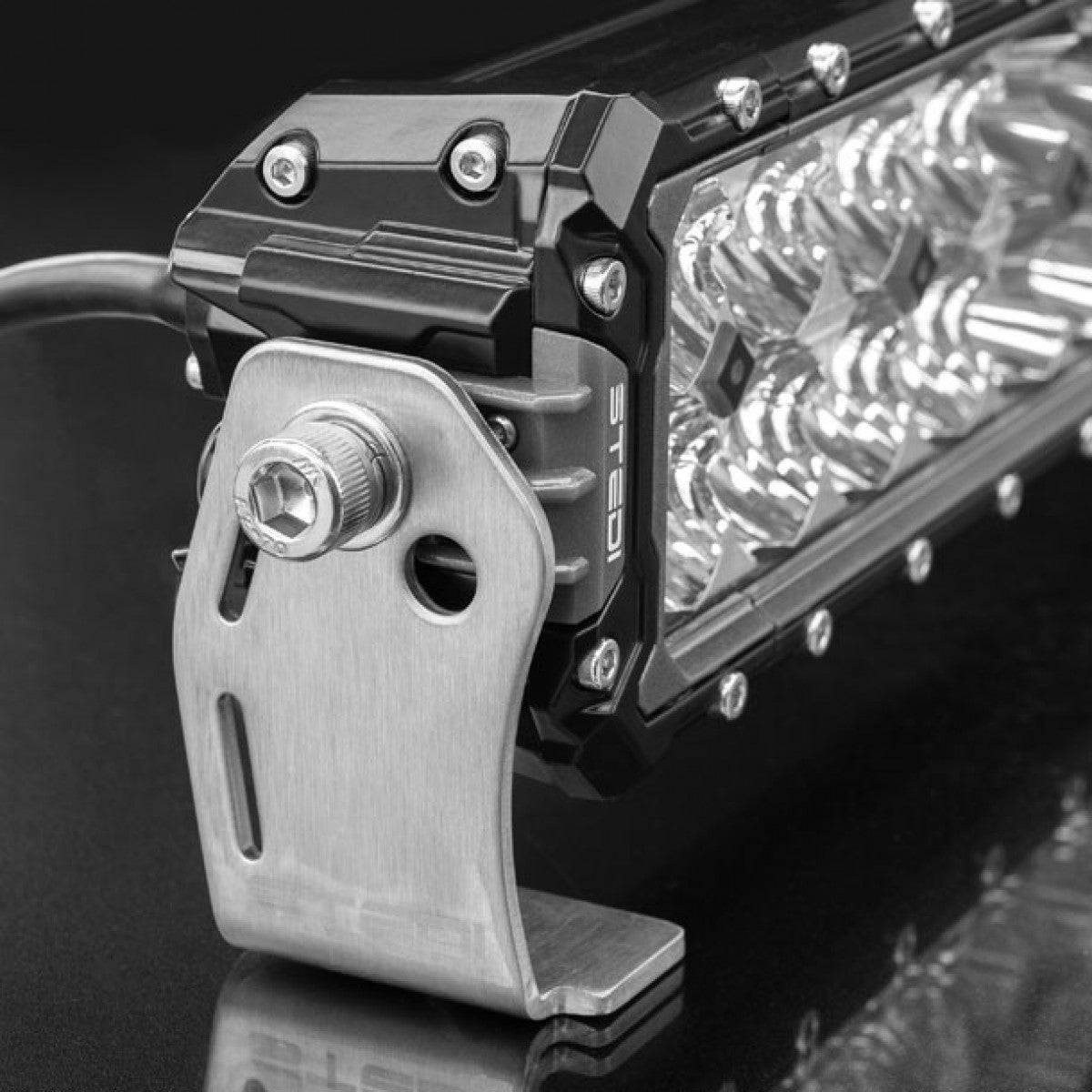

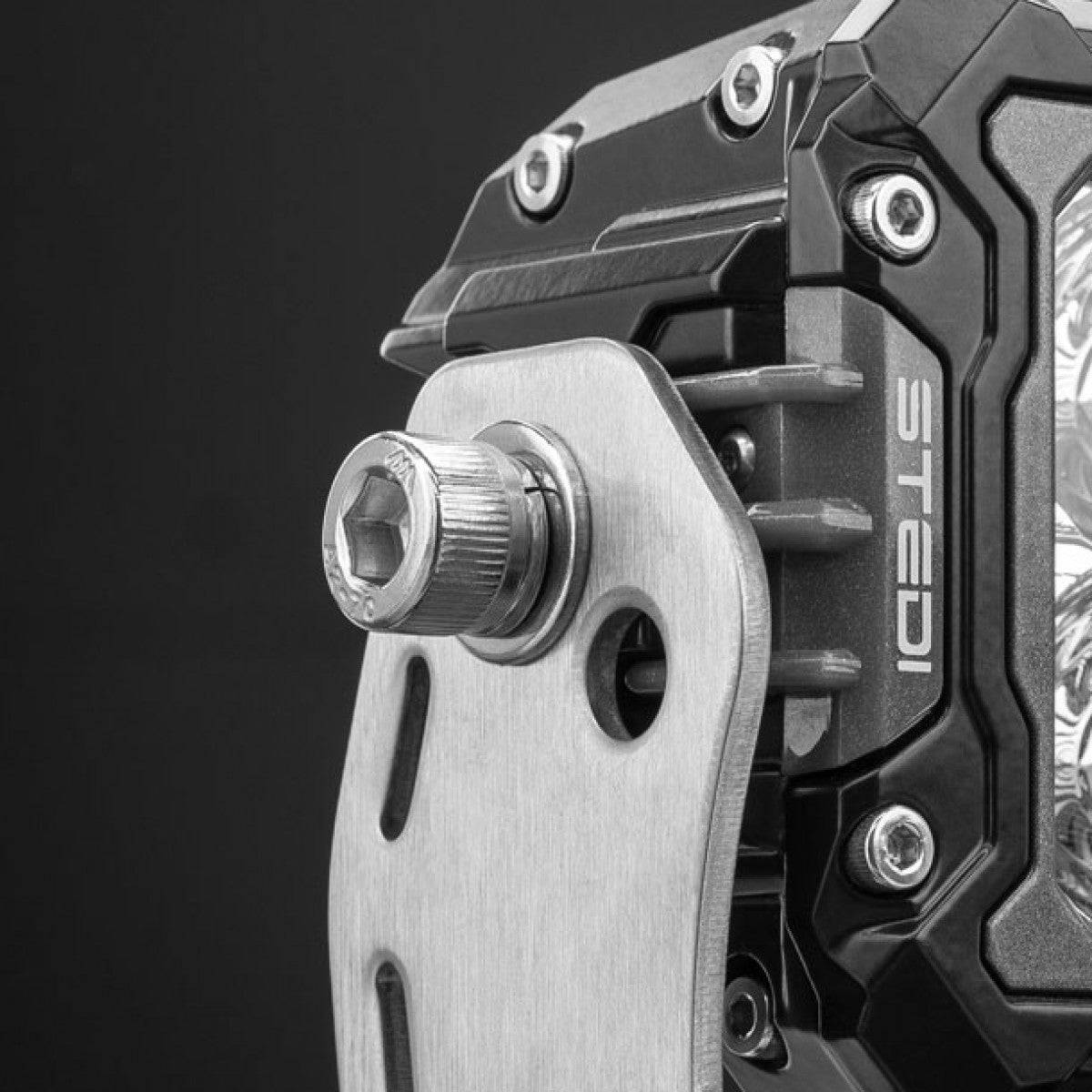

- Or use our 3mm thick 304 Stainless steel side brackets, which feature + or - 15mm height adjustment.
No nonsense 5 Year Replacement Warranty backed by an Australian company that has a brick & mortar presence.
PINNACLE OF PERFORMANCE
When our customers fire up their brand new STEDI ST4K for the first time it's no surprise the first word is generally a swear word. With our range of ST4Ks running PURE Drive technology to take full advantage of the input power with 97% going straight to the LEDs and aggressive build quality, the ST4K is built for the test.


JACK OF ALL TRADES
Seeking the perfect all-rounder but getting overwhelmed by the choice of LED Driving lights out there? With the wide market of curved, straight, and micro bars you can sometimes find yourself getting confused by choice and eventually falling onto a light that might not even meet your intended purpose. The ST4K meets all corners of the market with its combo beam bringing the best of spot + flood, shooting an amazing 468m in distance and 55m each side of the vehicle in flood beam.
ENVIABLE PEDIGREE
The STEDI ST4K has been built on the same platform as the STEDI TYPE X which is our flagship when it comes to LED Driving Lights providing the best of both worlds with 20 OSRAMs® OSLON® LEDs and a wide range of sizes, the application for the ST4K is endless. The ST4K proves to be a well-performing all-rounder in any situation so if it's a single multi-purpose light your after, the ST4K will meet your needs.

TECH SPECS
LED MANUFACTURER | OSRAM (Oslon)® |
LED COUNT | 100 |
VOLTAGE | 12V & 24V |
LENS MATERIAL | Optical Grade, Hard Coated Lexan |
LUMENS | 24,000 LUMENS |
PEAK INTENSITY (CANDELA) | 1,104,000cd |
HOUSING MATERIAL | A360.0 Cast face plate, extruded Aluminum heat sink |
AMPERES | 23.2a @ 13.6v |
LIFESPAN | 50,000 |
FLOOD BEAM | 50° |
SPOT BEAM | 5.8° |
INGRESS PROTECTION | IP68 |
OPERATING TEMP | -40°C to 60°C |
WEIGHT | 6.620kg |
-
