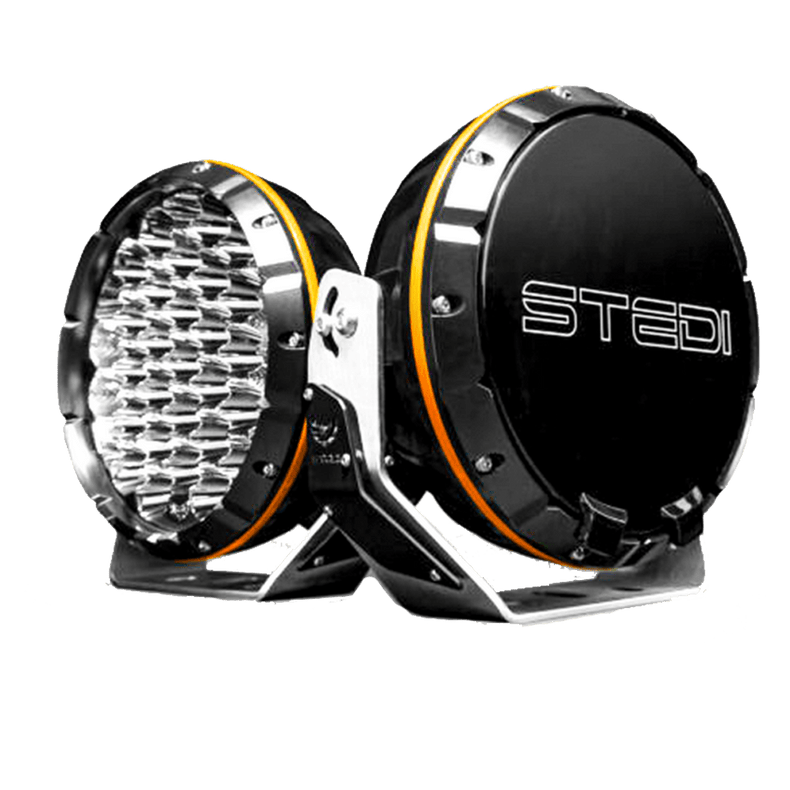

Stedi 8.5 TYPE-X Sport

Stedi

sku: LEDTYPE-X-SRT

Stedi 8.5 TYPE-X Sport

$479.00

or up to 12 months interest free. Fees apply.

Pay in 4 interest-free payments of $119.75 with



Stedi 8.5 TYPE-X Sport

Stedi 8.5 TYPE-X Sport

Total: $479.00

Click & Collect — Save 5%

  • Checking store availability...

Stedi 8.5 TYPE-X Sport
⭐ Customer Reviews ⭐

description

description

Stedi 8.5 TYPE-X Sport

HIGH PERFORMANCE - ACCESSIBLE PRICE

We welcome the all-new Type-X Sport – Our most affordable driving light yet.  Our very existence as a brand is to offer high-performance, high-quality driving lights at accessible prices.  Compare build quality, performance and list of inclusion with other offerings on the market and you will conclude that our Type-X Sport is peerless.  (Registered Design Number 201914860 & Registered Trademark).




SPECIFICATIONS:


LED 36 x Osram Oslon SSL
RAW LUMENS 20,780 (Pair)
TESTED LUMENS 14,950 (Pair)
AMP DRAW  9.8A @ 13.2v (each)
POWER DRAW 129W
CANDELA 1,102,500cd
BEAM PATTERN 4 x Spread 32 x Spot Beam
INGRESS PROTECTION IP68 | Submersible up to 3m
COLOUR TEMP (CCT)  5700K
VOLTAGE COMPATIBILITY  12v & 24v
LUMEN MAINTENANCE  50,000 LM-80
WEIGHT 3.35kg (each)
PHOTOMETRIC DATA
10 M 11,025 Lx
50 M  441 Lx
200 M 27 Lx
300 M 12 Lx
400 M 6 Lx
1,000 M 1.1 Lx
1,050 M 1 Lx

LEGENDARY TYPE-X DNA

Three years since the inception of original Type-X, we’ve taken an already proven platform and completely redesigned it from the ground up. All-new reflector geometry, all-new LEDs and all-new housing.

We’ve increased the depth of the optics by 35% allowing for a perfectly collimated beam and the resultant increase in light intensity. The beam diameter strikes a sublime balance between width and throw and will send light right out to 1,050m. Four dedicated built-in wide-beam optics disperse light in the nearfield, and transition beautifully with the spot beam.

STEDI Type X Sport LED Spot Lights Night Shot

THE NERDY DETAILS

  • 4mm thick 304 Series Stainless Mounting bracket, which includes rubber dampener and an additional 3mm upper plate.
  • A360.0 Cast Housing | Boasting superior strength and corrosion resistance.
  • 3mm Thick GE Lexan Lens with hard coating | Virtually unbreakable & scratch resistant
  • 100% Polyester UV and abrasion resistant powder coat
  • IP68 | Dust & Particle tight + Water-proof up to 3 meters
  • Nitto Denko Pressure Equalization vent with membrane | Protects against water ingress, dust & contaminants.
  • Environmentally Sealed Deutsch® DTP-2 connector
  • EMI & RFI Suppression circuitry – We guarantee it.
  • Each TYPE-X Sport comprises 36 of OSRAM’s® finest OSLON® LED, selected for its high luminous flux and perfectly matches optical properties.
  • Four wide-beam reflectors built-in, which form a lateral shaped flood pattern designed to minimize valuable light wasted up to the sky. Also available separately are the snap-on wide-beam covers, for environments demanding an increased peripheral vision.
  • 5700K CCT offers stunning clarity and definition with excellent Colour Rendering Index (CRI)

Type X Sport Dimensional Diagram

STEDI Type X Sport 8.5 Inch Lux Diagram

5700 Kelvin (Pure White)
