Stedi

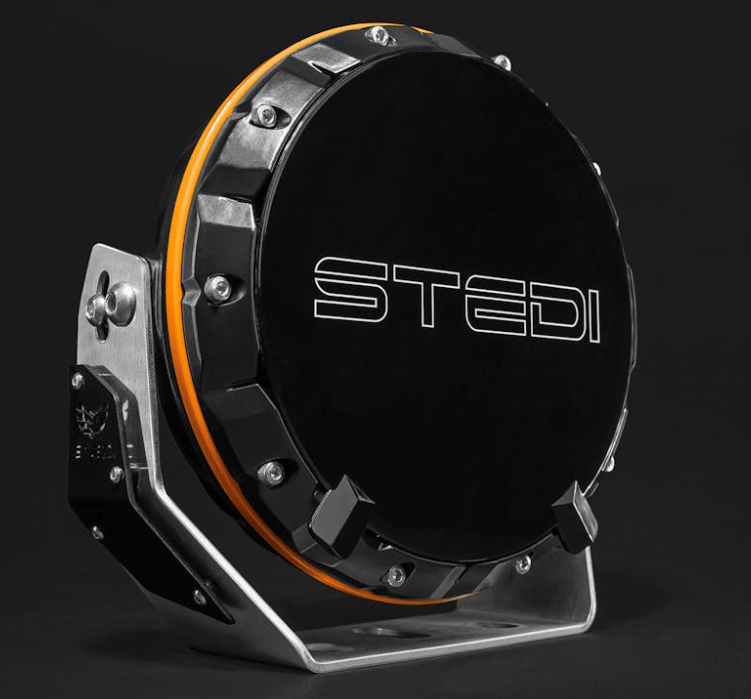

SINGLE (1X LIGHT) 8.5" TYPE-X™ SPORT
sku: SNGL-X1-SPORT-8-5INCH
description
delivery
review
HIGH PERFORMANCE - ACCESSIBLE PRICE
Get to know the Type-X™ Sport; our most affordable driving light yet. The goal of STEDI™ is to offer high-performance, high-quality driving lights at accessible prices. Compare the build quality, performance, and list of inclusions with other offerings on the market and you will conclude that our Type-X™ Sport is peerless.
LEGENDARY TYPE-X™ DNA
All-new reflector geometry, all-new LEDs, and all-new housing. We’ve increased the depth of the optics by 35% allowing for a perfectly collimated beam and the resultant increase in light intensity. The beam diameter strikes a sublime balance between width and throw, sending light right out to 1,050m. Four dedicated built-in wide-beam optics disperse light evenly into the nearfield, and transition beautifully with the spot beam.
STEDI™ DESIGN LANGUAGE
Some people call it the little things; for us, it is literally everything. We have obsessed over the most trivial geometries and design elements to achieve a visually stunning luminaire. The accompanying brackets (with the laser-cut STEDI™ branding) will allow the Type-X™ Sport to be mounted on a range of locations on your vehicle.
THE NITTY GRITTY.
THE NERDY DETAILS
- 4mm thick 304 Series Stainless Mounting bracket, which includes rubber dampener and an additional 3mm upper plate.
- A360.0 Cast Housing | Boasting superior strength and corrosion resistance.
- 3mm Thick GE Lexan Lens with hard coating | Virtually unbreakable & scratch resistant
- 100% Polyester UV and abrasion resistant powder coat
- IP68 | Dust & Particle tight + Water-proof up to 3 meters
- Nitto Denko Pressure Equalization vent with membrane | Protects against water ingress, dust & contaminants.
- Environmentally Sealed Deutsch® DTP-2 connector
- EMI & RFI Suppression circuitry – We guarantee it.
- Each TYPE-X Sport comprises 36 of OSRAM’s® finest OSLON® LED, selected for its high luminous flux and perfectly matches optical properties.
- Four wide-beam reflectors built-in, which form a lateral shaped flood pattern designed to minimize valuable light wasted up to the sky. Also available separately are the snap-on wide-beam covers, for environments demanding an increased peripheral vision.
- 5700K CCT offers stunning clarity and definition with excellent Colour Rendering Index (CRI)
TECH SPECS
| LED | 36 x Osram Oslon SSL |
| RAW LUMENS | 10, 390 |
| TESTED LUMENS | 7, 475 |
| AMP DRAW | 9.8A @ 13.2v |
| POWER DRAW | 129W |
| CANDELA | cd |
| BEAM PATTERN | 4 x Spread 32 x Spot Beam |
| INGRESS PROTECTION | IP68 | Submersible up to 3m |
| COLOUR TEMP (CCT) | 5700K |
| VOLTAGE COMPATIBILITY | 12v & 24v |
| LUMEN MAINTENANCE | 50,000 LM-80 |
| WEIGHT | 3.35kg |
| PHOTOMETRIC DATA | |
| 10 m | 11,025Lx |
| 50 m | 441Lx |
| 200 m | 27Lx |
| 300 m | 12Lx |
| 400 m | 6Lx |
| 1,000 m | 1.1Lx |
| 1,050 m |
1Lx |
