Front Runner
4 Cub Box Drawer / Rear Cargo Storage Solution - BY FRONT RUNNER (SSAM009
sku: SSAM009
description
delivery
review
4 CUB BOX DRAWER / WIDE - BY FRONT RUNNER
DOWNLOAD FITTING INSTRUCTIONS - CLICK HERE

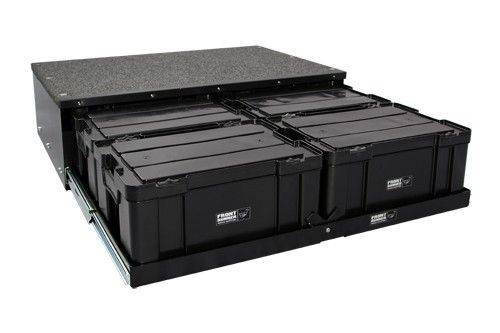

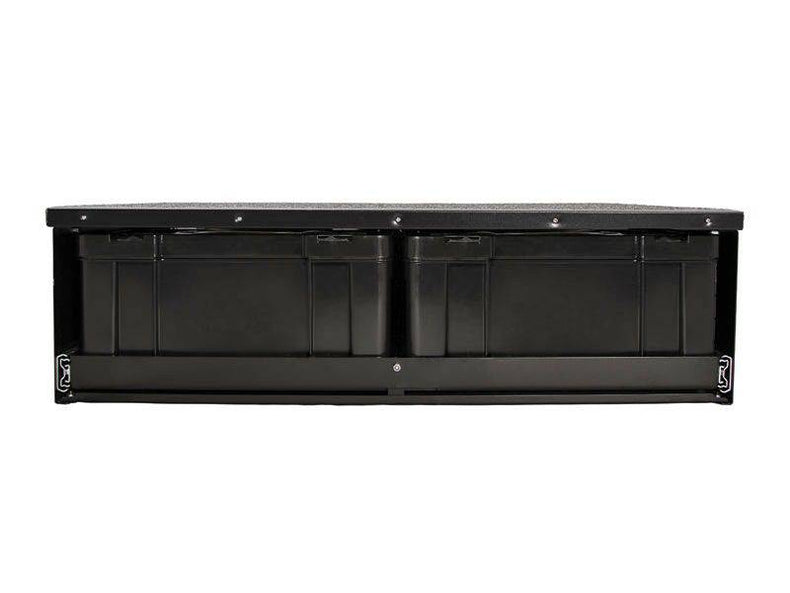

This 4 Cub Box Drawer / Wide kit provides a comprehensive and practical storage solution for 4x4s, SUVs and crossovers that have smaller than usual cargo areas. Easily transport stored items between a vehicle and the campsite, garage, store, etc. including easy access to coolers, fridges, gear boxes and more. Engineered tough for both on and off-road conditions.
Product Dimensions: 653mm L x 940mm W x 261mm H
Consists of:
1 x Drawer unit
Fitting Instructions
Materials used:
Black powder coated mild steel - Drawer Frame
Nylon Carpet & Laminated Plywood - Top Deck
Product Dimensions:
653mm (25.7") L x 940mm (37") W x 261mm (10.3") H
Interior Drawer Dimensions:
Full Size:
629mm (24.8") L x 890mm (35") W x 45mm (1.8") H
(NOTE: This unit has a 20mm (0.8") H rib down the middle)
2 Equally Sized Sections (Left & Right Hand Side):
629mm (24.8") L x 440mm (17.3") W x 45mm (1.8") H
Weight:
36.8kg (81.1lbs)
Load Rating:
113kg (250lbs)
Special Notes:
The drawer has a rotating latch to secure drawer in place.
If Front Runner doesn’t offer a vehicle-specific drawer kit for your make and model vehicle, consider this “universal” drawer kit. Since these drawers will only fit into appropriately sized vehicles, please see SPECS for exact product measurements.
- This specific drawer kit was designed to fit into vehicles with a smaller than usual cargo area.
- This 4 Cub Box Drawer / Wide kit includes a sliding drawer system, latch mechanism and detailed fitment instructions.
- Cub Pack, the heart of this modular storage system, are perfectly sized for kitchen support, dried goods, tools, camera gear, toiletries, even cloths.
- These latch-to-close, stackable and durable Cub Pack storage containers are made from black, high strength plastic and have integrated grips for easy carrying.
- High-strength bearing slides allows the drawer to extend nearly 100% from the anchored base.
- Fitted with a latching mechanism, the drawer is kept in place when in the closed position.
- 113kg/ 250 lb per drawer load carrying capacity.
- The flat deck allows you stack 150kg / 331 lb of gear across the surface.
- Customize your own storage configurations. Stack and secure luggage, Wolf Pack, Cub Pack, aluminum boxes and other storage containers to the upper deck using Stratchits or other straps as well as Cargo Rail / 1150mm and Black Tie Down Rings / Eye Nuts.
- Finished with the same durable black powder coating as the Front Runner Slimline II Rack.
- The 4 Cub Box Drawer / Wide can be easily installed. Depending on your vehicle’s make and model, drilling may be required.
- All Front Runner Storage Systems are backed by a 2-year warranty.
Note: These “universal” drawers do not come with a vehicle specific deck completion set or faceplates.
If you have any questions about whether or not this product will fit your vehicle, please contact Front Runner before purchase.
*Please Note: Cub Packs are not included when purchasing this Drawer System and are sold separately.
Please Note: Installation of this product requires a Rivnut tool. We suggest using the Rivnut tool / M6/M8.
