IRIS 7 INCH LED HEADLIGHT - CHROME (5700K)

Stedi

sku: LEDMOTO-IRIS-7

IRIS 7 INCH LED HEADLIGHT - CHROME (5700K)

$199.00
IRIS 7 INCH LED HEADLIGHT - CHROME (5700K)

IRIS 7 INCH LED HEADLIGHT - CHROME (5700K)

Total: $199.00

Click & Collect

  • Checking store availability...

For Click & Collect, Simply Select Pick up in Store at check out

If a item is not in stock in your state, a store with stock will collect your online order and ship the item to your shipping address.
IRIS 7 INCH LED HEADLIGHT - CHROME (5700K)
⭐ Customer Reviews ⭐

description

description

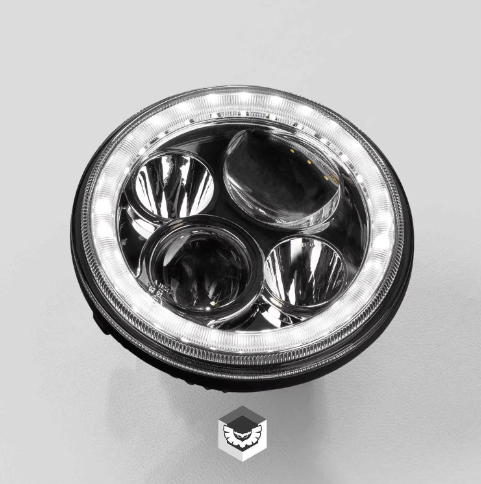

FINALLY, A WORTHY 7" LED HEADLAMP

You've either heard about or tried the other disaster 7" LED kits on the market. Our IRIS LED Headlight unit is ADR Compliant and features a proper RHD beam geometry. Our IRIS is a complete LED unit that will replace your existing 7" factory headlight unit. Complete with separate High & Low beams as well as a full halo park light, the IRIS is your all-in-one upgrade solution for your motorbike or 4x4 vehicle that runs a 7" headlight (list of known compatible models in the description).



PERFORMANCE THAT SURPASSES THE VERY BEST



The low beam is full of volume and throws out to 141m at 1 Lux. The high beam throws out to 235m at the 1 Lux which is better than many auxiliary lights on the market. The integrated optional halo park light can be wired to ignition or to a dedicated switch to illuminate to offer day-time safety. Anti-Flicker technology for an effortless install.



ADR COMPLIANT



The IRIS falls within the parameters of ADR making it a 100% legal LED driving light upgrade. No wasting time checking whether or not your vehicle meets the guidelines for retrofitting LED lights, from the get-go you're all set.



THE NITTY GRITTY.



Our 7 Inch Iris Chrome LED Driving Lights should be the first step when improving your motorcycles' light output. Complete with High and Low beam as well as a full LED halo ring park light, the IRIS 7"  is the perfect replacement for your existing headlight.

KEY PERFORMANCE METRICS

  • ADR Approved E-Mark CE
  • Proper Right Hand Drive Beam Geometry
  • H4 Adaptor
  • High Beam 1 Lux @ 235m
  • Low Beam 1 Lux @ 141m

PERFORMANCE BUILD QUALITY

  • Anodized Polyester Powdercoat
  • Lexan Polycarbonate (PC) Lens refractor
  • Die-cast aluminium alloy (ADC12) Heat-Sink
  • IP67 | Ingress Protection
  • Shock Proof, Waterproof and UV Shielded
  • Protected against Reverse Polarity and Voltage / Current surges
  • Warranty | 2 Years

COMPATIBLE MODELS:

  • 1955-1983 Jeep CJ-5
  • 1976-1986 Jeep CJ-7
  • 1981-1985 Jeep CJ-8
  • 1997-2006 Jeep Wrangler (TJ)
  • 2007-2015 Jeep Wrangler 2-Door (JK)
  • 2007-2015 Jeep Wrangler Unlimited 4-Door (JK)
  • 1982 - 1991 Mitsubishi Pajero (L040)
  • Land Rover Defender
  • 70 Series Toyota Landcruiser with round headlamp (Needs additional H4 CANBUS to resolve negative switching)
  • 60 Series Toyota Landcruiser with round headlamp (Needs additional H4 CANBUS to resolve negative switching)
  • Toyota FJ-40/45/47 (Needs additional H4 CANBUS to resolve negative switching)
  • GQ Patrol
  • Harley Davidson Motorcycles
  • Mercedes Benz G Wagon
  • Kenworth Trucks with 7 inch round headlight



TECH SPECS



LED High Beam: 2x 10w XML-2 LED
Low Beam: 2x 15w LED
Park Light: 30x 1.5w Osram
RAW LUMENS High Beam: 2000Lm
Low Beam: 1400Lm
Park Light: 150Lm
AMP DRAW High Beam: 2.4a @ 13.6v
Low Beam: 1.6a @ 13.6v
Park Light: 0.2a @ 13.6v
LIFESPAN 50,000 Hours
INGRESS PROTECTION IP67
OPERATING TEMPERATURE -30°C~+60°C
LENS MATERIAL LEXAN Polycarbonate
COLOUR TEMP 5700K
VOLTAGE COMPATIBILITY 12v & 24v
PEAK BEAM DISTANCE @ 1 LUX

High Beam: 235m
Low Beam: 141m

Park Light: 8m
WEIGHT (each)
 		1.140kg each
DROP IN REPLACEMENT FOR #6014, 6015, 6016, H6024 and Par 56 headlamp designs
ADR COMPLIANCE

ADR 46/00

ADR 49/00



WHAT'S INCLUDED



  • 1 x 7 inch STEDI IRIS LED Headlight
