Stedi

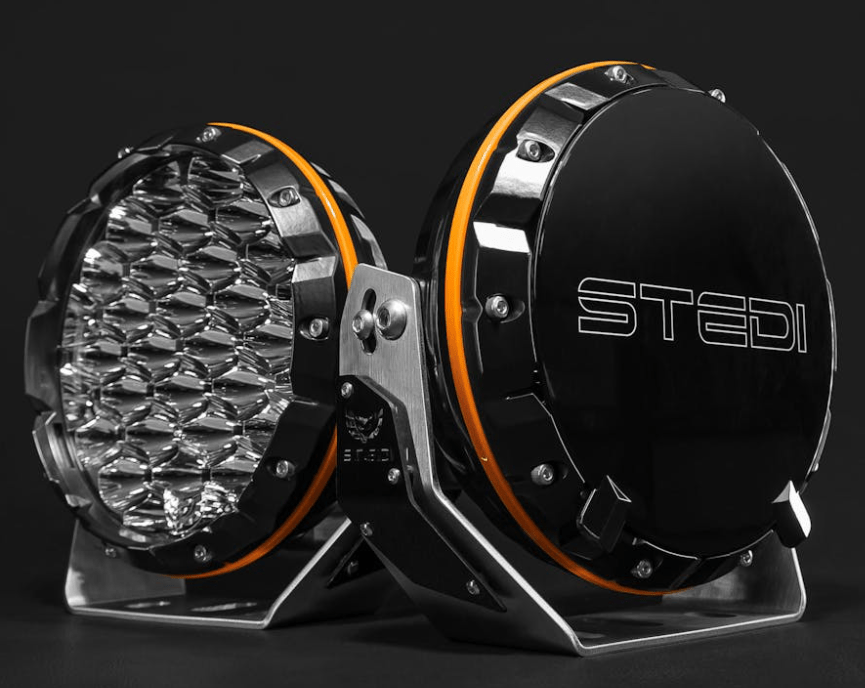

7" TYPE-X™ SPORT
sku: LEDTYPE-X-SRT-7INCH
description
delivery
review
STEDI™ DESIGN LANGUAGE.

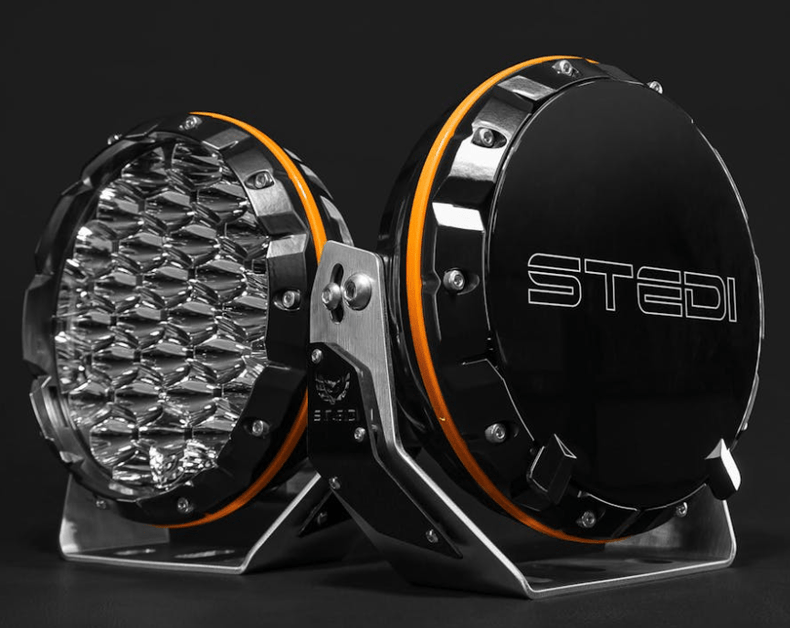

Some people call it the little things. For us, it is literally everything. We obsessed over even the most trivial geometries and design elements to achieve a visually stunning luminaire. The 4mm 304 Stainless steel bracket features our signature shoulder armour with laser-cut STEDI™ branding. A carefully considered orange rim surrounding the housing offers just the right amount of visual impact while ensuring that the overall look and feel play nicely equally on a Sandy Taupe Landcruiser as it will on a Magnetic Grey Ranger.
LEGENDARY TYPE-X DNA.
It's been a few years since the inception of the original Type-X™. We’ve taken an already proven platform and completely redesigned it from the ground up. The 7" Type-X™ Sport features an increased optics depth of 35%, allowing for a perfectly collimated beam and the resultant increase in light intensity. The beam diameter strikes a sublime balance between width and throw, sending light right out to 895m. Four dedicated built-in wide-beam optics disperse light in the near field and transition beautifully with the spot beam.
HIGH PERFORMANCE - ACCESSIBLE PRICE.
The 7" Type-X™ Sport; our most affordable driving light yet, with the inherented STEDI™ ability to deliver a high-performance and high-quality driving illuminance. Simply look at the build quality and performance of other offerings on the market and you will be convinced that the 7" Type-X™ Sport remains untouched.
THE NITTY GRITTY.
THE NERDY DETAILS
- 4mm thick 304 Series Stainless Mounting bracket, which includes rubber dampener and an additional 3mm upper plate.
- A360.0 Cast Housing | Boasting superior strength and corrosion resistance.
- 3mm Thick GE Lexan Lens with hard coating | Virtually unbreakable & scratch resistant
- 100% Polyester UV and abrasion resistant powder coat
- IP68 | Dust & Particle tight + Water-proof up to 3 meters
- Nitto Denko Pressure Equalization vent with membrane | Protects against water ingress, dust and contaminants.
- Environmentally Sealed Deutsch DT-2 connector
- EMI RFI Suppression circuitry - We guarantee it.
- Each 7" TYPE-X Sport comprises 32 of OSRAM's OSLON LEDs, selected for its high luminous flux and perfectly matches optical properties.
- 4 wide-beam reflectors built-in, which form a lateral shaped flood pattern designed to minimize valuable light wasted up to the sky.
- 5700K CCT offers stunning clarity and definition with excellent Colour Rendering Index (CRI)
TECH SPECS
| LED | 32 x Osram Oslon SSL |
| RAW LUMENS | 16,640 (Pair) |
| TESTED LUMENS | 12,820 (Pair) |
| AMP DRAW | 6.4A @ 13.2v (each) |
| POWER DRAW | 85W (each) |
| CANDELA | 819,200cd |
| BEAM PATTERN | 4 x Spread 28 x Spot Beam |
| INGRESS PROTECTION | IP68 | Submersible up to 3m |
| COLOUR TEMP (CCT) | 5700K |
| VOLTAGE COMPATIBILITY | 12v & 24v |
| LUMEN MAINTENANCE | 50,000 LM-80 |
| WEIGHT | 2.250kg (each) |
| OPERATING TEMP | -40°C - 60°C |
| PHOTOMETRIC DATA | |
| 10 m | 8,129 L |
| 50 m | 327 Lx |
| 200 m | 20 Lx |
| 300 m | 9 Lx |
| 400 m | 5 Lx |
| 895 m | 1Lx |
WHAT'S INCLUDED
- 2 x STEDI 7" TYPE-X Sport
- 2 x STEDI Black Out Covers
- 1 x Easy Fit High Beam Wiring with DT-2 Sealed Connectors, H4, HB3 Adapter plugs to high beam. 60A Relay, Fuse, Switch
- 3 Series Stainless Steel Nuts and Bolts
- Rubber Shock Dampener
- Wiring Instructions
